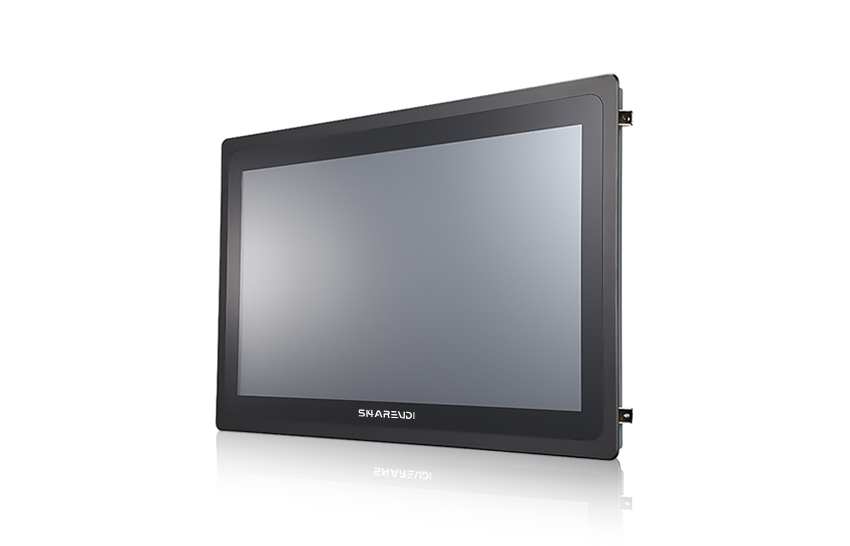

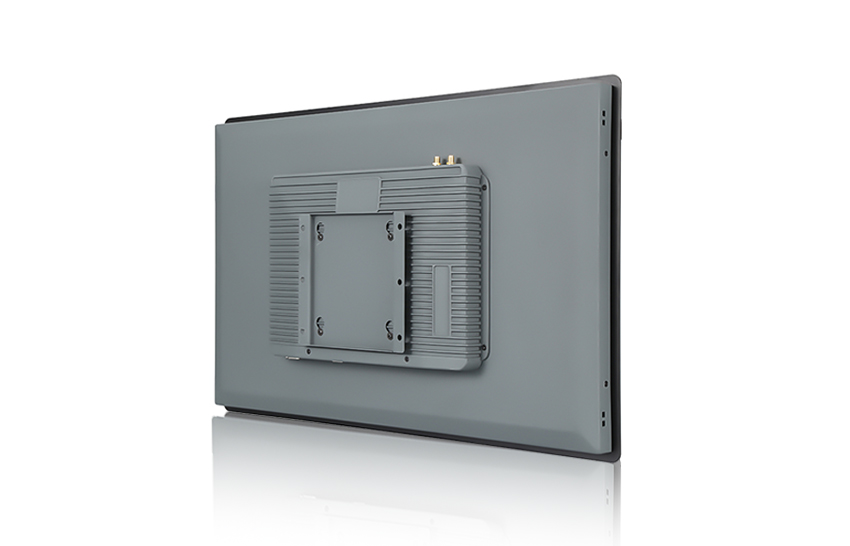

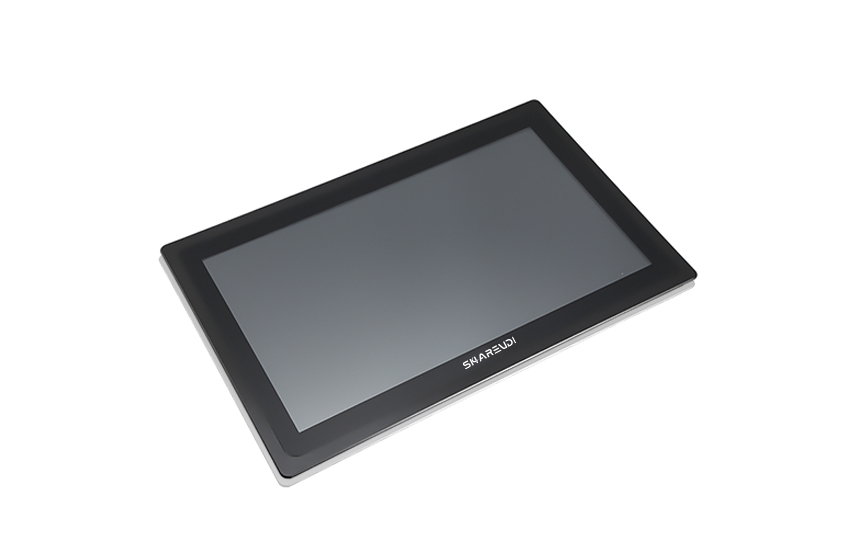

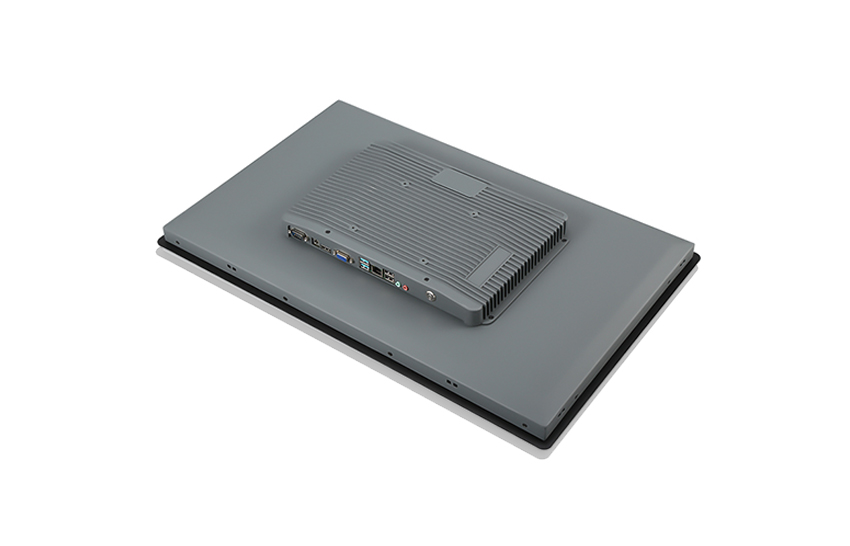

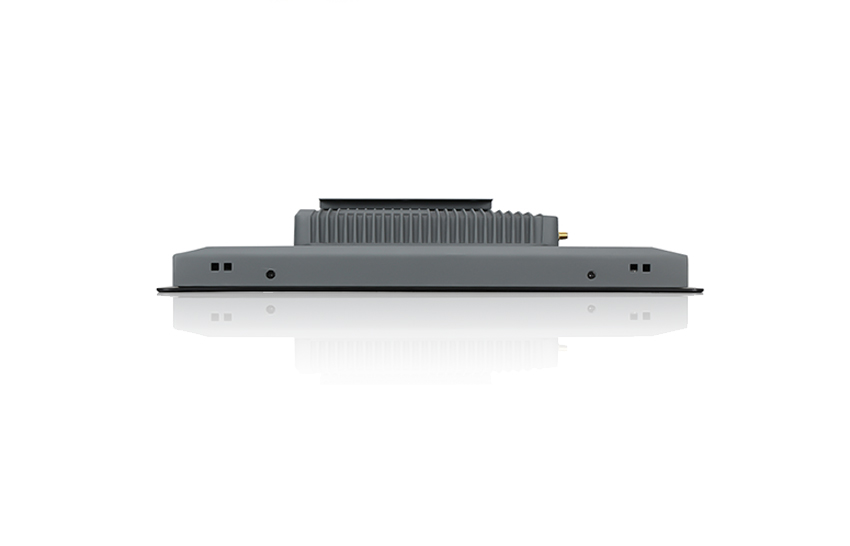

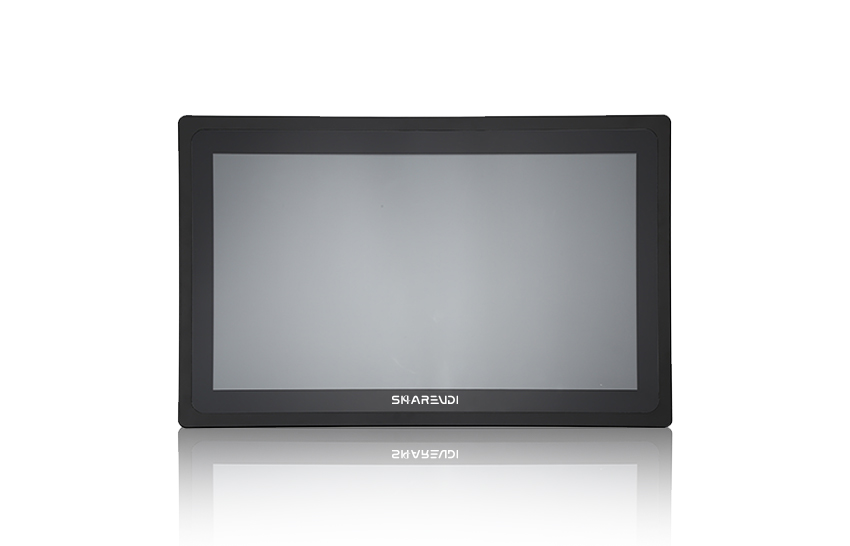

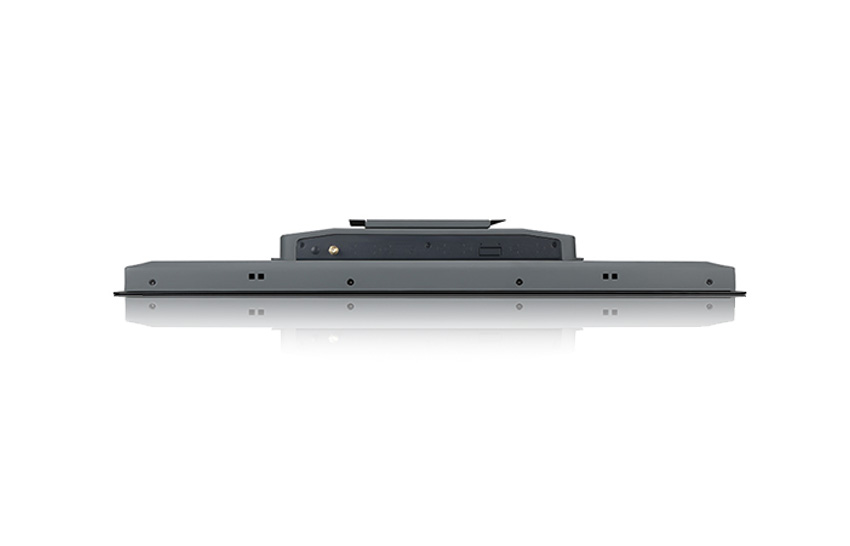

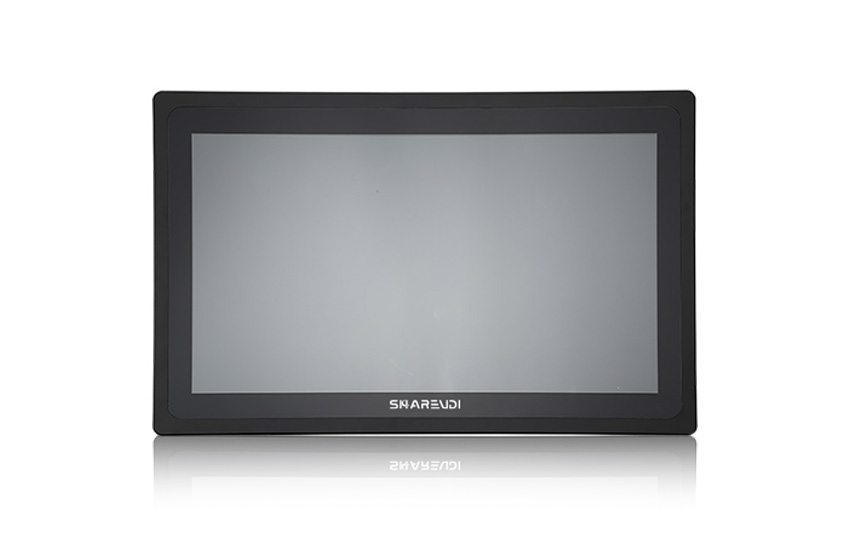

A2 Industrial Touch Screen PC Linux/Android
Model: A2-RK3576
● ARM® RK3576 Eight nuclear processor
● 10 points touch screen
● Customizable RAM/Flash
● Optional android/ubuntu OS

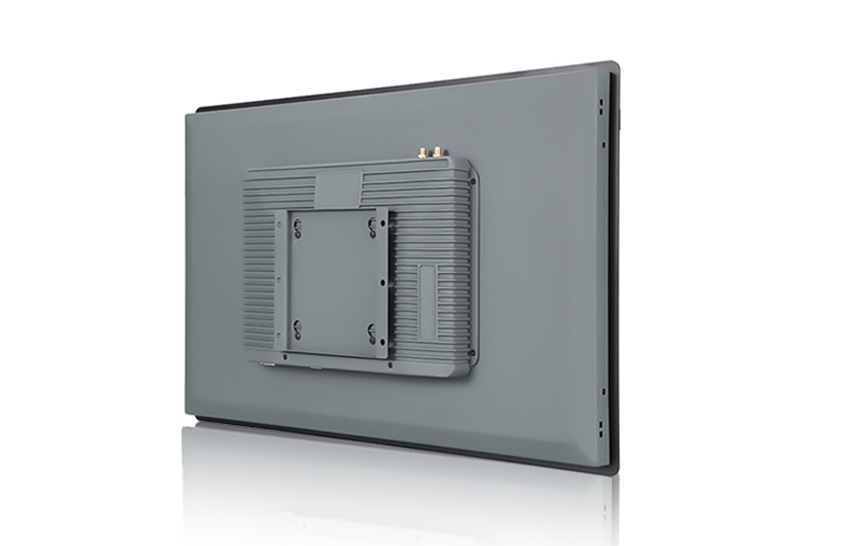

● Can be embedded or vesa mount
● Apply for Digital Signage/KIOSK/Queuing System
A2-RK3576 is an industrial-grade panel PC featuring an octa-core RK3576 processor, 10-point touchscreen, and flexible OS/memory options, designed for digital signage, kiosks, and queuing systems in demanding environments.
-
Part No.A2-RK3576
-
-
Processor System
CPU
ARM® RK3576 Eight nuclear processor
RAM
DDR4 8GB
Storage
Onboard 128GB EMMC
NPU
6TOPS
-
Display
Panel Size
21.5''
Max. Resolution
1920*1080p
Max. Colors
16.7M(8-bit)
Treatment
Anti-Glare
Brightness
250-1000nits
Viewing Direction
Full Viewing
Aspect Ratio
16:9
-
Touch Screen
Touch Points
10 Points
Type
Capacitive Touch
-
Color
Gray
-

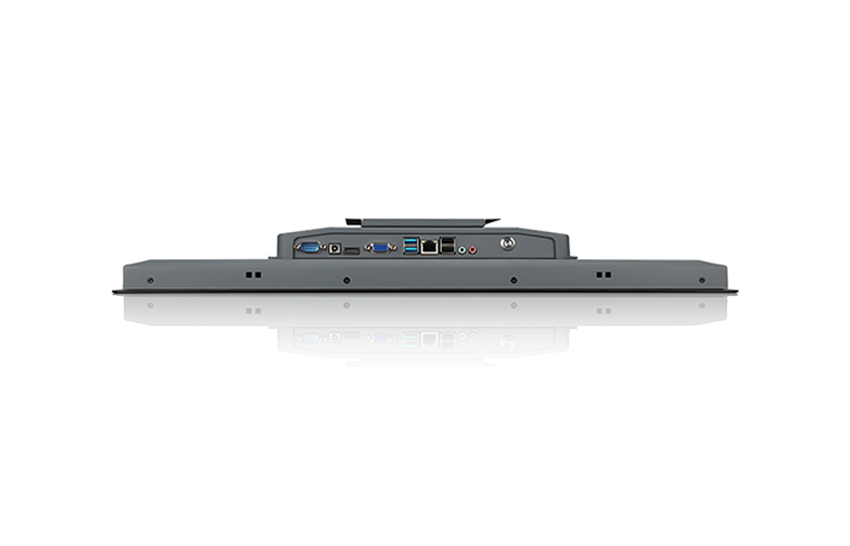

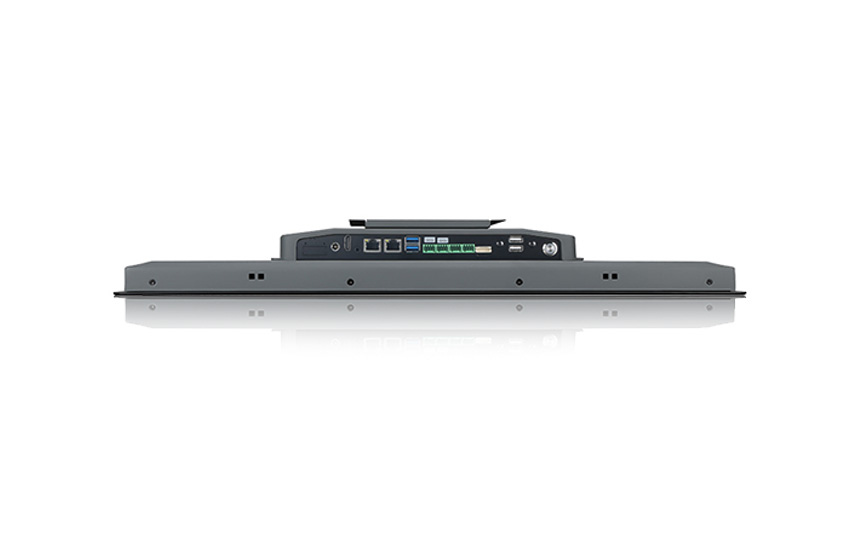

I/O Interface
Video output
1*HDMI
Serial Port
2 x RS232 & 2 x RS485
USB Port
2 x USB 2.0 & 2 x USB 3.0
Ethernet
2 x Ethernet
Extendable Port
1 x SIM card, 1 x GPIO(4PIN)
-
General
Certification
CE,FCC,ROHS,ISO
Dimension(W*H*D)
554*355*68.3mm
Power Input
AC100-240V.50-60HZ
Power Output
DC12V 3A~5A
Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
9KG
-
Environment
Operating Temperature
-10 ~ 60℃
Storage Temperature
-20 ~ 70℃
Operation Humidity
10% ~ 80%
Storage Humidity
10% ~ 90%
-
CPU
A2-RK3576
ARM® RK3576 Eight nuclear processor
-
RAM
A2-RK3576
DDR4 8GB
-
Storage
A2-RK3576
Onboard 128GB EMMC
-
NPU
A2-RK3576
6TOPS
-
Panel Size
A2-RK3576
21.5''
-
Max. Resolution
A2-RK3576
1920*1080p
-
Max. Colors
A2-RK3576
16.7M(8-bit)
-
Treatment
A2-RK3576
Anti-Glare
-
Brightness
A2-RK3576
250-1000nits
-
Viewing Direction
A2-RK3576
Full Viewing
-
Aspect Ratio
A2-RK3576
16:9
-
Touch Points
A2-RK3576
10 Points
-
Type
A2-RK3576
Capacitive Touch
-
A2-RK3576
Gray
-
Video output
A2-RK3576
1*HDMI
-
Serial Port
A2-RK3576
2 x RS232 & 2 x RS485
-
USB Port
A2-RK3576
2 x USB 2.0 & 2 x USB 3.0
-
Ethernet
A2-RK3576
2 x Ethernet
-
Extendable Port
A2-RK3576
1 x SIM card, 1 x GPIO(4PIN)
-
Certification
A2-RK3576
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A2-RK3576
554*355*68.3mm
-
Power Input
A2-RK3576
AC100-240V.50-60HZ
-
Power Output
A2-RK3576
DC12V 3A~5A
-
Mounting Options
A2-RK3576
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A2-RK3576
9KG
-
Operating Temperature
A2-RK3576
-10 ~ 60℃
-
Storage Temperature
A2-RK3576
-20 ~ 70℃
-
Operation Humidity
A2-RK3576
10% ~ 80%
-
Storage Humidity
A2-RK3576
10% ~ 90%
