K2-F24H Firewall Computer N100
Model:
K2-F24H
6x Intel LAN ports
Lower Power Consumption, only TDP 6W
Anti-vibration & shock proof, industrial grade design for 7/24 use
Support TPM 2.0 (optional)
Support Wifi+Bluetooth and 4G module(SIM card)
Support Windows and Linux
Support Din rail, Embedded, Stand, Mount installation
Applied in Firewall, VPN , Network Server, Network Security, Router etc.
6x Intel LAN ports
Lower Power Consumption, only TDP 6W
Anti-vibration & shock proof, industrial grade design for 7/24 use
Support TPM 2.0 (optional)
Support Wifi+Bluetooth and 4G module(SIM card)
Support Windows and Linux
Support Din rail, Embedded, Stand, Mount installation
Applied in Firewall, VPN , Network Server, Network Security, Router etc.
Featuring 6 high-performance Intel 2.5GbE (2500Mbps) LAN ports, the fanless, compact K2-F24H delivers versatile network functionality as a robust firewall, LAN/WAN router, VPN appliance, DHCP/DNS server, or IDS/IPS security system. Engineered for demanding industrial environments, its rugged design operates reliably 24/7 across an extended temperature range of -10°C to 60°C. With an ultra-low power consumption of just 6W TDP, the K2-F24H provides a highly efficient, maintenance-free networking solution, ideal for ensuring continuous operation in industrial automation, SCADA systems, edge computing nodes, and other critical OT environments.
-
Part No.K2-F24H-N100
-
-
Processor
CPU
Intel N100, 4 Cores / 4 Threads
Frequency
0.8GHz
Max Turbo Frequency
3.4GHz
Cache
6 MB
Chipset
Alder Lake-N
-
Memory
Technology
1*SO-DIMM DDR5
Max. Capacity
32GB
-
Storage
M.2 SATA
128GB/256GB/512GB/1TB
-
Graphics
Graphics
Intel® UHD Graphics
-
Network
LAN
10/100/1000/2500Mbps Adaptive, 6*Intel I226
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front

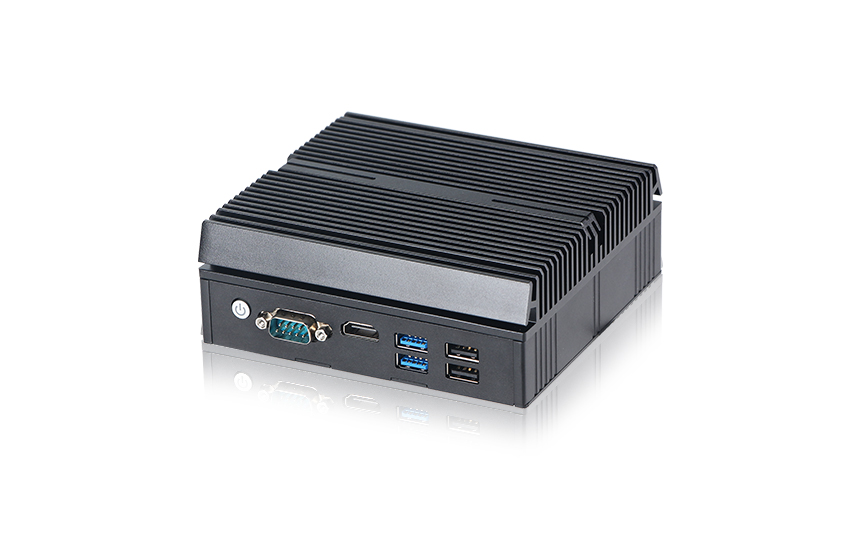

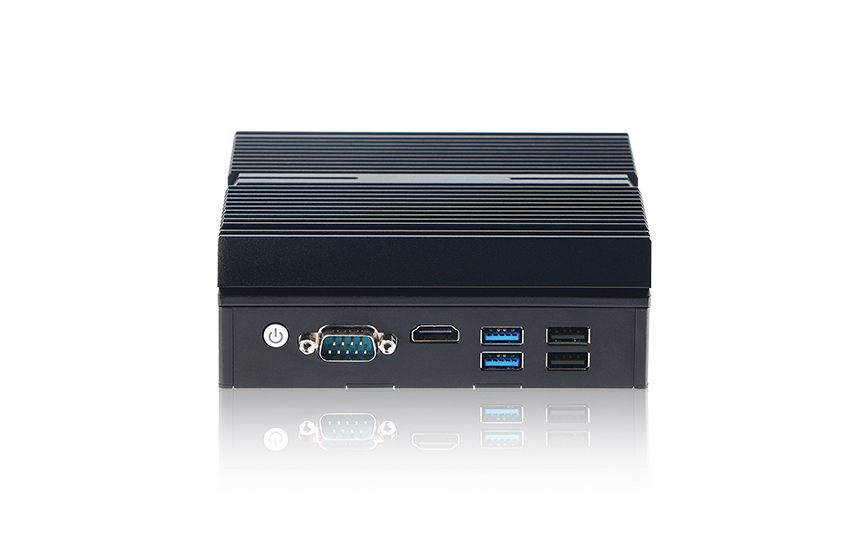

POWERON/OFF，1*COM RS232，1*HDMI，2*USB3.0，2*USB2.0
Rear

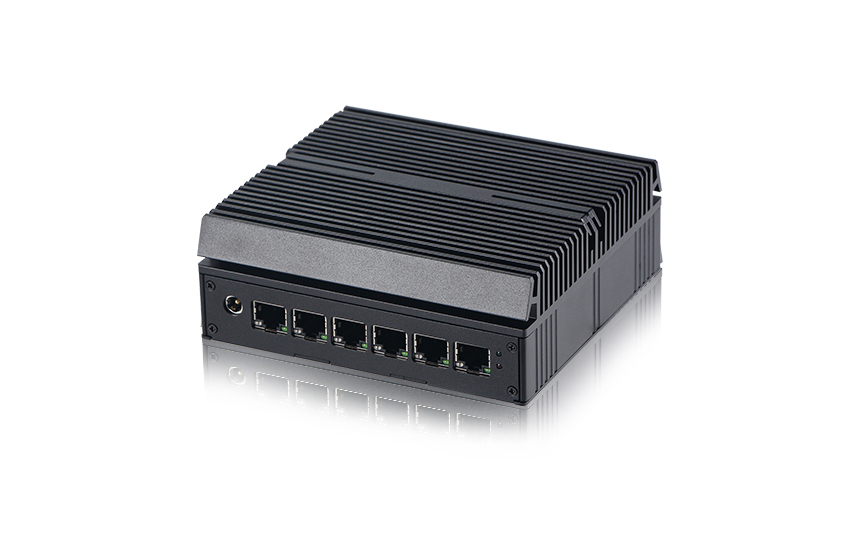

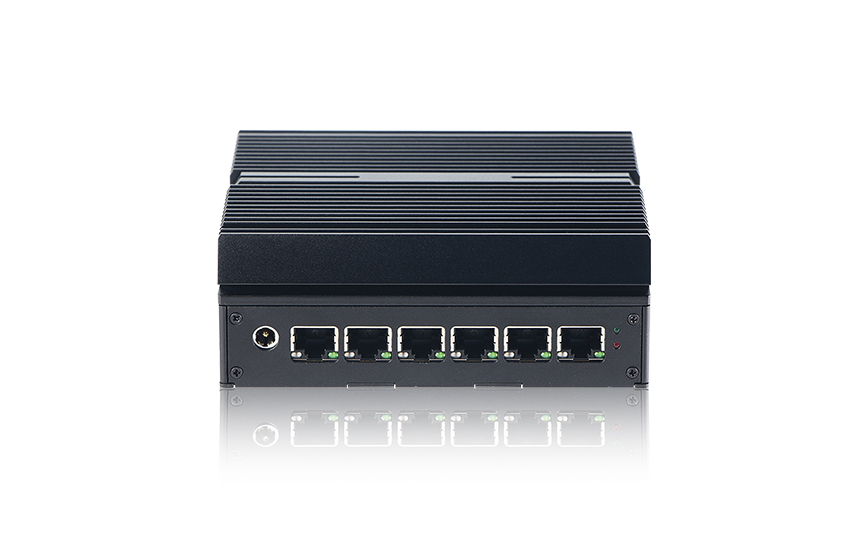

1*DC，6*Ethernet，Indicator light
-
Extendable
I/O
1*FP_USB1、1*SATAPWR、1*SATA1、1*TPM1、1*JBAT、1*FP、1*PW_IN、1*AT_MODE1、1* BAT、1*SIM
Module
WIFI+Bluetooth Module (MINI PCIE) ，4G Module ( SIM card slot on the motherboard)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 135mm*W 126mm*H 50mm
Weight(Net)
0.82kg
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
