K2-F17H Edge Computer Intel N150
Model:
K2-F17H
Latest Technology with Intel N150 processor
Lower Power Consumption, only TDP 6W
Anti-vibration & shock proof, industrial grade design for 7/24 use
3x display ports (2 x HDMI + 1 x DP)
Dual Gigabit Ethernet Ports, 2.4G+5G Dual Band Wi-Fi & BT
Support 4G LTE module,SIM card
Support TPM 2.0 (optional)
9-36V wide range power input
Operates within a wide temperature range of -20°C to 65°C
Support Din rail, Embedded, Stand, Mount installation
Latest Technology with Intel N150 processor
Lower Power Consumption, only TDP 6W
Anti-vibration & shock proof, industrial grade design for 7/24 use
3x display ports (2 x HDMI + 1 x DP)
Dual Gigabit Ethernet Ports, 2.4G+5G Dual Band Wi-Fi & BT
Support 4G LTE module,SIM card
Support TPM 2.0 (optional)
9-36V wide range power input
Operates within a wide temperature range of -20°C to 65°C
Support Din rail, Embedded, Stand, Mount installation

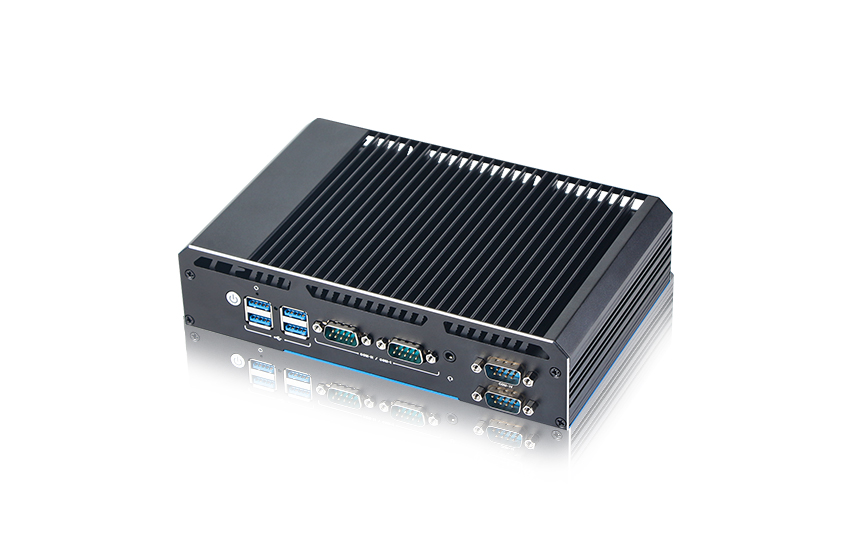

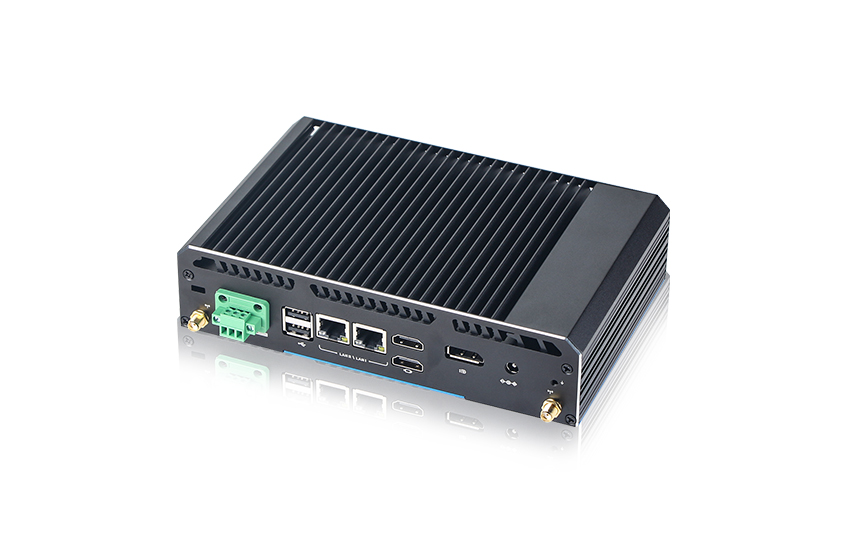

This Industrial Mini PC upgrades to an Intel® N150 processor, delivering 4-core performance at 0.8-3.6GHz with just 6W TDP for enhanced efficiency. Its fanless, compact design withstands -10~60℃ environments, enabling reliable 24/7 operation—ideal for industrial automation setups requiring continuous runtime. For commercial displays, it supports triple 4K outputs (2×HDMI + 1×DP) for digital signage or self-service kiosks, while industrial users benefit from 4 COM ports, GPIO, and remote wake features for factory automation tasks. Housed in an aluminum shell with VESA mounting, it balances rugged reliability with versatile connectivity for business-critical applications that demand round-the-clock performance.
-
Part No.K2-F17H-N150
-
-
Processor
CPU
Intel N150, 4 Cores / 4 Threads
Frequency
0.8GHz
Max Turbo Frequency
3.6GHz
Cache
6 MB
Chipset
Alder Lake-N
-
Memory
Technology
1* DDR4 slot
Max. Capacity
16GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel UHD Graphics
-
Audio
Audio
HD Audio realtek ALC 897
-
Network
LAN
2*Realtek 8111H Gigabit interface
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
-
I/O Interface

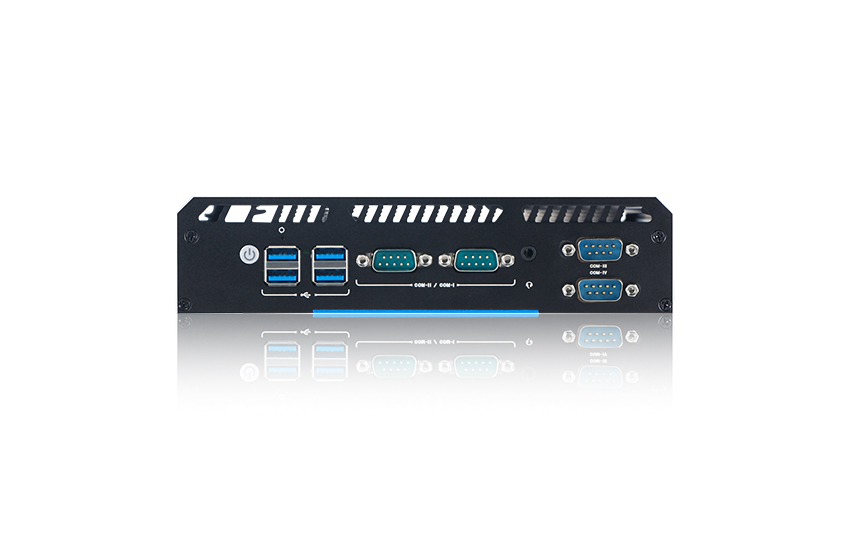

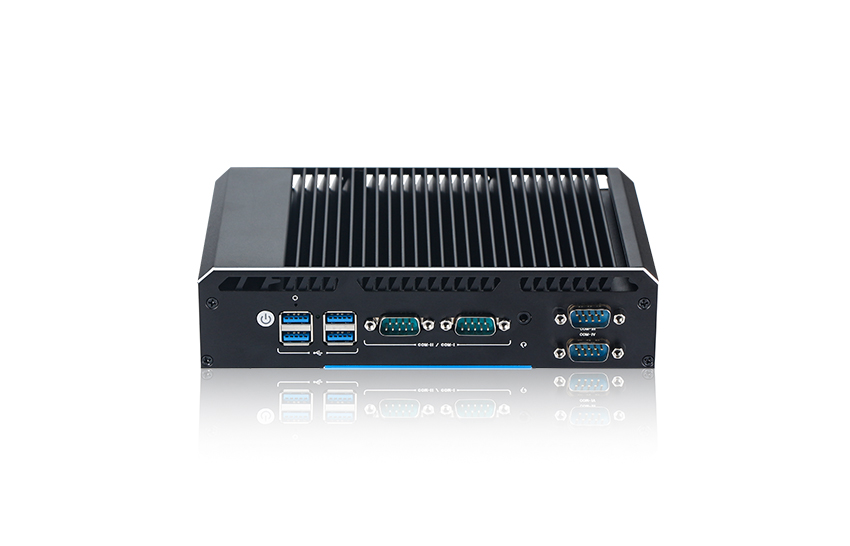

Front
4*USB3.0，4*Serial RS232/RS485 COM，Power ON/OFF，1*AUDIO(2-in-1 audioport)

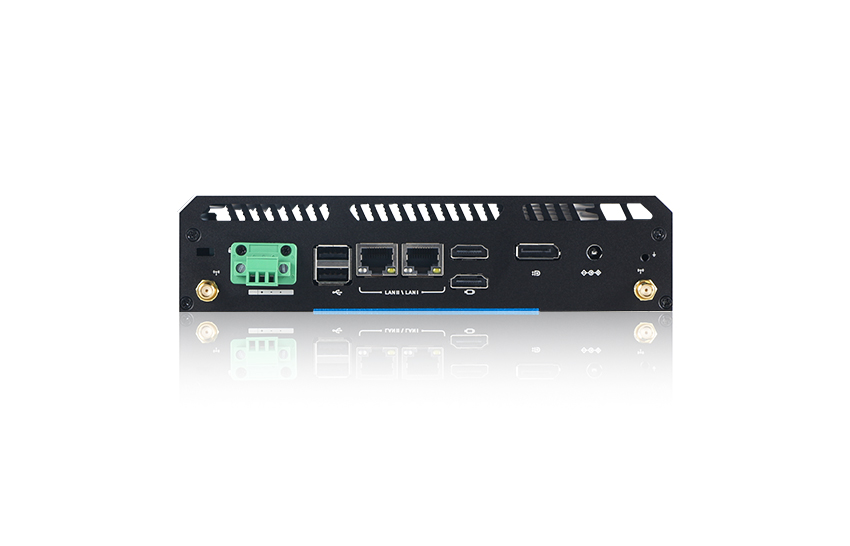

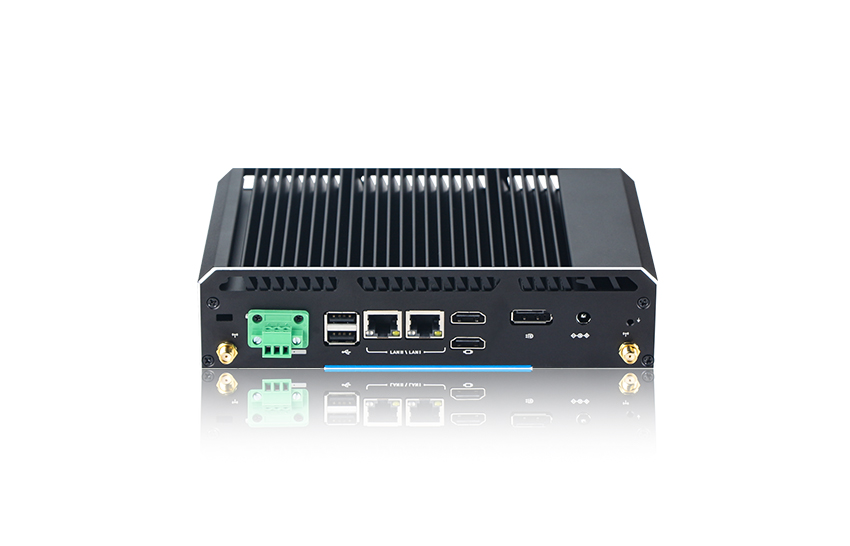

Rear
2*WIFI antenna，1*Phoenix Connector，2*USB2.0，2*Ethernet，2*HDMI，1*DP，1*DC
-
Extendable
I/O Ports
1*AT_ATX1 pin、2*COM pin、1*TPM pin、 1*GPIO pin、1*F_PANEL pin、 1 * SATA pin、 1 * PWR _ SATA pin、1*F _USB pin、1*JC1 pin、1*JRS485 pin、1*JBAT1 pin、 1*SIM card holder
Module
WIFI+Bluetooth Module(MPCIE)or 4G Module( SIM card slot on the motherboard)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V - 3A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.2KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
