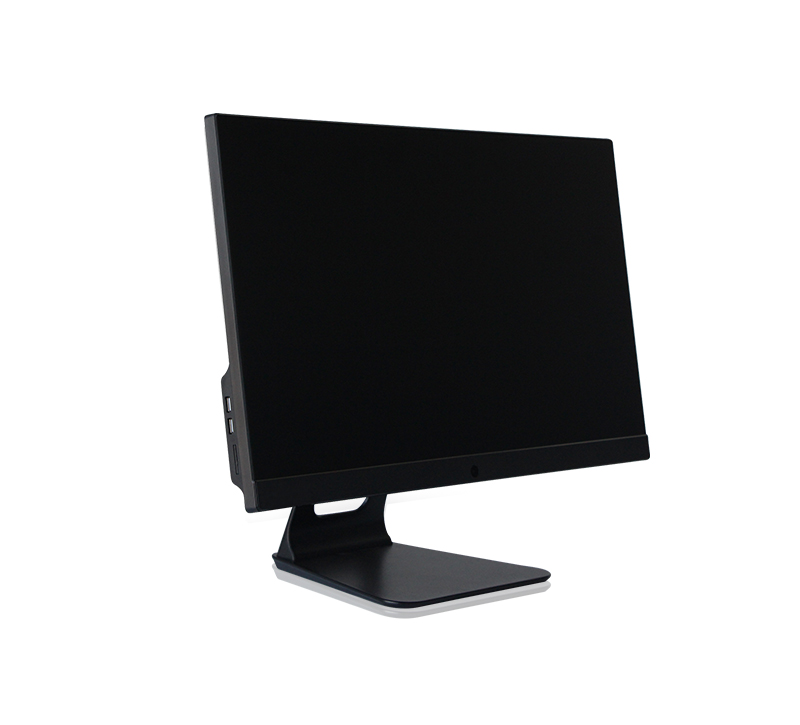

AIO238 All-In-One PC

Model:

AK2308
  • A vibrant 23.8-inch 4K Ultra HD display for exceptional clarity

  • Intel Core I7 8750H(6 cores, 12 threads, 2.20GHz-4.10GHz, with  Intel UHD Graphics)

  • High speed RAM DDR4 up to 32GB, 512GB M.2 SATA SSD storage

  • Support Dual-Band Wifi+Bluetooth and 4G module

  • Windows 10/11 and Linux

  • Applied in Office, Education and Family, etc,.

Featuring a powerful 6-core, 12-thread processor, the AIO238 All-in-One PC effortlessly handles demanding tasks like multitasking, content creation, and everyday computing. Connect all your essential peripherals with six convenient USB ports – perfect for printers, drives, keyboards, and more, without clutter.

Experience breathtaking clarity on the 23.8-inch 4K Ultra HD display—perfect for detailed presentations, immersive movie nights, or crisp educational content. Designed for versatility, the AIO238 excels in office workflows, educational applications, and family entertainment. Enjoy smooth performance for presentations, online learning, streaming movies, or managing household tasks – all within a sleek, space-saving design.

Simplify your setup. Elevate your experience. The AIO238 delivers robust performance and essential connectivity for work, study, and home.


  • Part No.
    AK-2308-8750H
  • Processor

    CPU

    Intel Core i7 8750H, 6 Cores / 12 Threads

    Frequency

    2.20GHz

    Max Turbo Frequency

    4.10GHz

    Cache

    9MB

    Chipset

    Products formerly Coffee Lake

  • Memory

    Technology

    2*SO-DIMM DDR4L

    Max. Capacity

    32GB

  • Storage

    M.2 SATA

    SSD 128GB/256GB/512GB

    SATA

    HDD 500GB/1TB/2TB (Optional)

  • Graphics

    Graphics

    Intel UHD Graphics 630

  • Audio

    Audio

    HD Audio realtek ALC269

  • Network

    LAN

    10/100/1000Mbps Adaptive RTL 8111H

    Wireless

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • I/O Interface

    Side

    POWER ON / OFF,USB2.0*2

    Bottom

    4*USB3.0,1*HDMI,1*VGA,1*LAN,1*MIC-IN,1*LINE-OUT,1*DC

  • Extendable

    Module

    WIFI+Bluetooth Module,4G Module

  • Power

    Input

    AC100-240V. 50-60Hz DC

    Output

    12V - 7A

  • Operating System

    Windows/Linux

  • Physical

    Dimension

    23.8 inch

    Weight(Net)

    4kg

    Color

    Black

    Cooling Method

    Active cooling

    Mounting Options

    Standing Base

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    0~60 ℃

    Storage Temperature

    -20~75 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    AK-2308-8750H

    Intel Core i7 8750H, 6 Cores / 12 Threads

  • Frequency

    AK-2308-8750H

    2.20GHz

  • Max Turbo Frequency

    AK-2308-8750H

    4.10GHz

  • Cache

    AK-2308-8750H

    9MB

  • Chipset

    AK-2308-8750H

    Products formerly Coffee Lake

Memory
  • Technology

    AK-2308-8750H

    2*SO-DIMM DDR4L

  • Max. Capacity

    AK-2308-8750H

    32GB

Storage
  • M.2 SATA

    AK-2308-8750H

    SSD 128GB/256GB/512GB

  • SATA

    AK-2308-8750H

    HDD 500GB/1TB/2TB (Optional)

Graphics
  • Graphics

    AK-2308-8750H

    Intel UHD Graphics 630

Audio
  • Audio

    AK-2308-8750H

    HD Audio realtek ALC269

Network
  • LAN

    AK-2308-8750H

    10/100/1000Mbps Adaptive RTL 8111H

  • Wireless

    AK-2308-8750H

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

I/O Interface
  • Side

    AK-2308-8750H

    POWER ON / OFF,USB2.0*2

  • Bottom

    AK-2308-8750H

    4*USB3.0,1*HDMI,1*VGA,1*LAN,1*MIC-IN,1*LINE-OUT,1*DC

Extendable
  • Module

    AK-2308-8750H

    WIFI+Bluetooth Module,4G Module

Power
  • Input

    AK-2308-8750H

    AC100-240V. 50-60Hz DC

  • Output

    AK-2308-8750H

    12V - 7A

Operating System
  • AK-2308-8750H

    Windows/Linux

Physical
  • Dimension

    AK-2308-8750H

    23.8 inch

  • Weight(Net)

    AK-2308-8750H

    4kg

  • Color

    AK-2308-8750H

    Black

  • Cooling Method

    AK-2308-8750H

    Active cooling

  • Mounting Options

    AK-2308-8750H

    Standing Base

  • Certification

    AK-2308-8750H

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    AK-2308-8750H

    0~60 ℃

  • Storage Temperature

    AK-2308-8750H

    -20~75 ℃

  • Operation Humidity

    AK-2308-8750H

    0~95% (No Condensation)

  • Storage Humidity

    AK-2308-8750H

    0~95% (No Condensation)
