A15 15'' Panel PC Linux/Android
Model:
A15-RK3576
● ARM® RK3576 Eight nuclear processor
● 10 points touch screen
● Customizable RAM/Flash
● Optional android/ubuntu OS
● Can be embedded or vesa mount
● Apply for Digital Signage/KIOSK/Queuing System
A10-RK3576 is an industrial-grade panel PC featuring an octa-core RK3576 processor, 10-point touchscreen, and flexible OS/memory options, designed for digital signage, kiosks, and queuing systems in demanding environments.

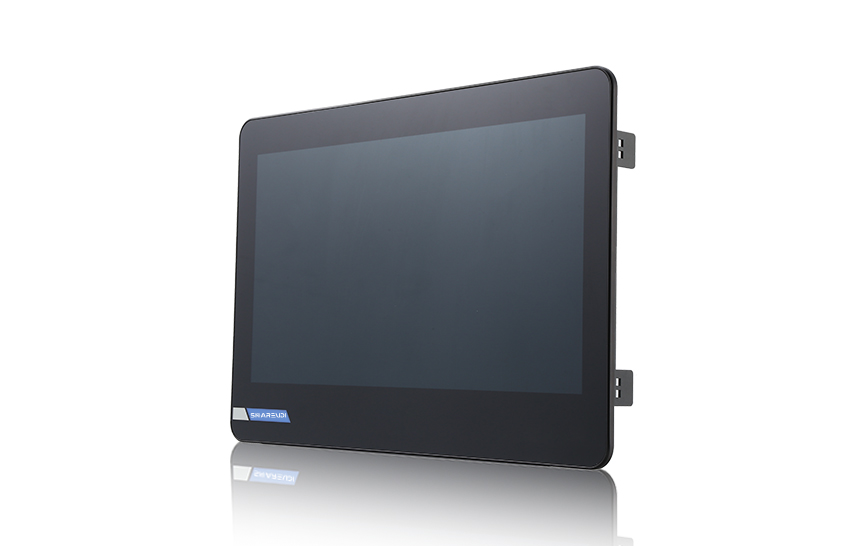

The Touch Panel PC A15 boasts an industrial-grade design featuring an IP65 rating, ensuring robust protection against dust and water ingress. This rugged and compact panel touch PC is built to withstand harsh environments, making it ideal for industrial applications. With a working temperature range of -10 to 65°C, it is both vibration-proof and water-proof, providing reliable performance in challenging conditions.

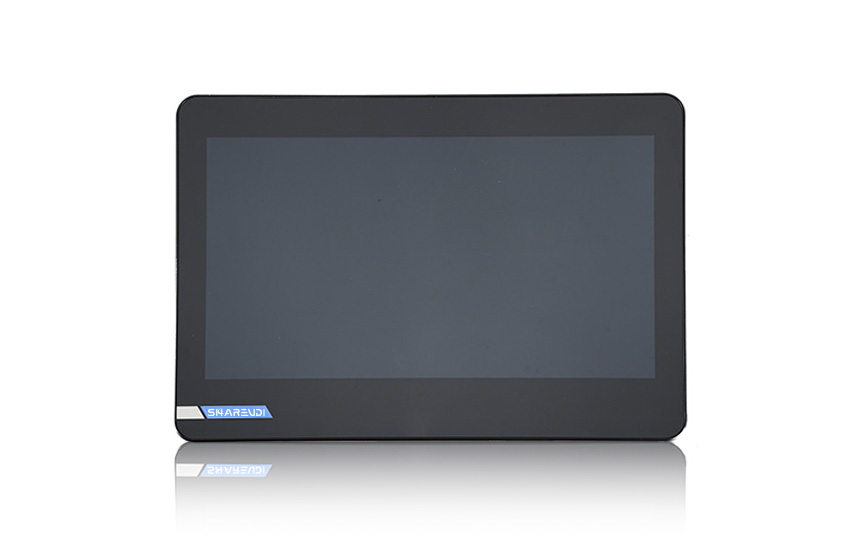

Equipped with a 15 inch capacitive touch screen, this industrial HMI touch panel offers a 4:3 aspect ratio and a resolution of 1024x768 pixels. With brightness levels ranging from 600 to 1000 nits, it can suite for both of indoor or outdoor environments. Additionally, the A15 is available in various sizes from 8 inches to 21.5 inches, catering to diverse user needs while maintaining excellent visual clarity.
Screen Size | 15.6 inch |
Aspect Ratio | 350 |
Touch Type | Capacitive Touch |
Display Type | LCD Module, a - Si TFT - LCD |
Multi - touch | Supports up to 10 points |
Max. Resolution | 1920x1080p |
Viewing Angle | 89 (right), 89 (up), 89 (down) |
Luminance(cd/m²) | 350 |
Contrast Ratio | 1000:1 |
Touch Accuracy | 2 - 2.5mm |
Response Time | <10ms |

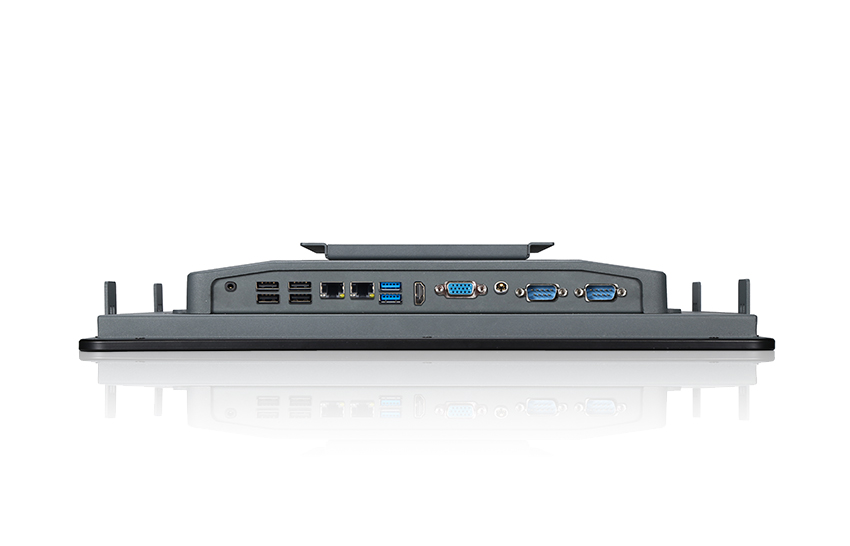

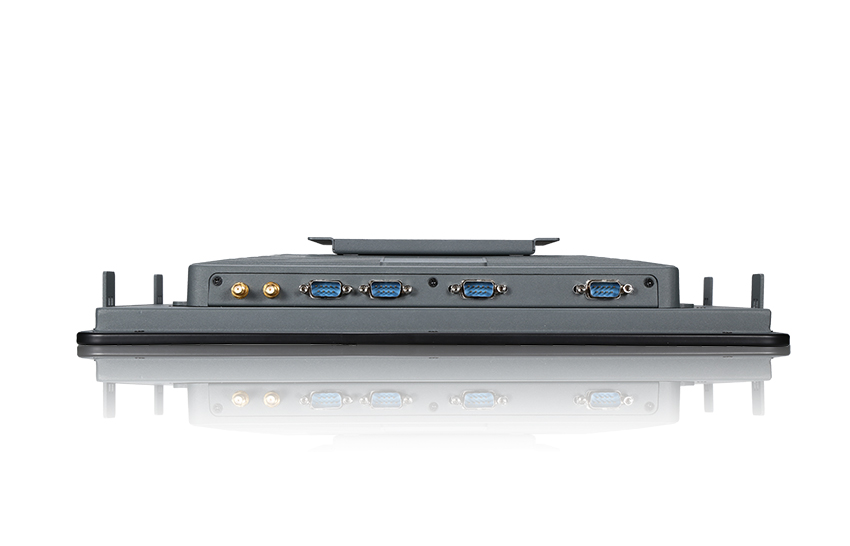

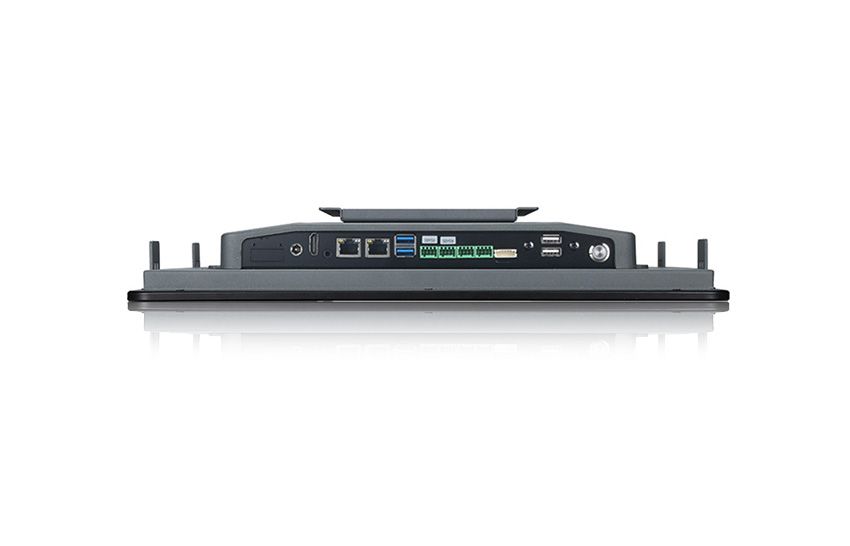

The multiple IO interfaces allows various connectivity options. For example, printer, RFID card reader, scanner cameras for facial recognition, and sensors for application control etc., making it a versatile solution for various industrial applications.The mainboard includes mini PCIe/M.2 expansion slots for Wi-Fi, Bluetooth, and 4G/5G LTE modules. This capability enhances connectivity options and enables real-time data transmission in industrial applications, making it an ideal choice for modern automation needs.
Ethernet | 2 pcs RJ45 Gigabit LAN |
USB | 4-6 pcs (USB2.0/USB3,0) |
COM | 2 pcs(up to 6),RS232/RS485 |
Display | 1xHDMI,1xVGA |
Audio | 1xAudio IN/Out |
Extendable port | Phoenix connector with power supply 9-36V GPIO port |
M.2 PCIE | 1-2 pcs pcs Support 4G LTE Module and WIFI/Bluetooh module |
The default power supply of this Touch Panel PC support 12V DC. It also includes an extendable phoenix connector that accommodates a wide voltage 9-36V supply range.
The Touch Panel PC A15 offers flexible hardware configurations with options for Intel processors ranging from AMD, Celeron to i3/i5/ i7 (5th-11th generation). This scalability allows businesses to tailor the performance of their industrial HMI touch panel to meet specific operational demands.
CPU | Intel core i3/i5/i7 |
Graphics | Intel HD Graphics |
Memory | 4GB/8GB/16GB/32GB 1-2 DDR3/DDR4 slots |
Storage | 128GB/256GB/512GB/1TB/2TB 1×mSATA,1x2.5 inch SATA |

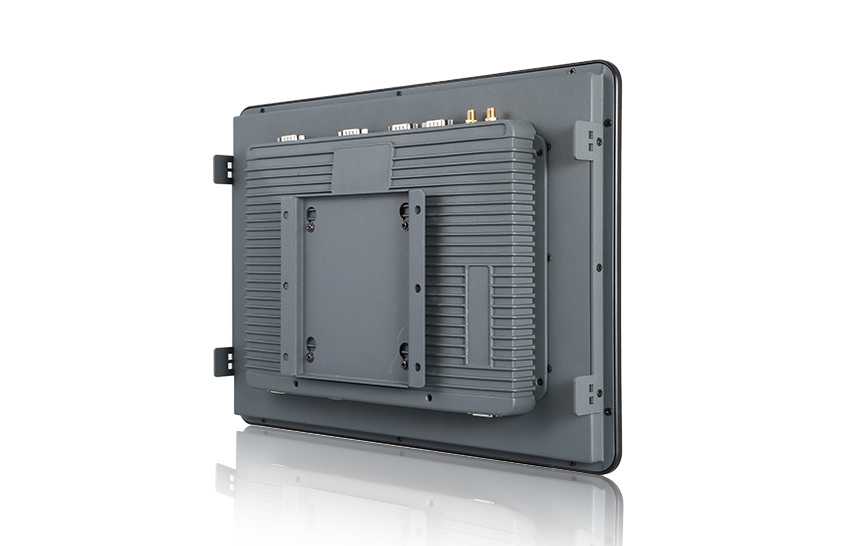

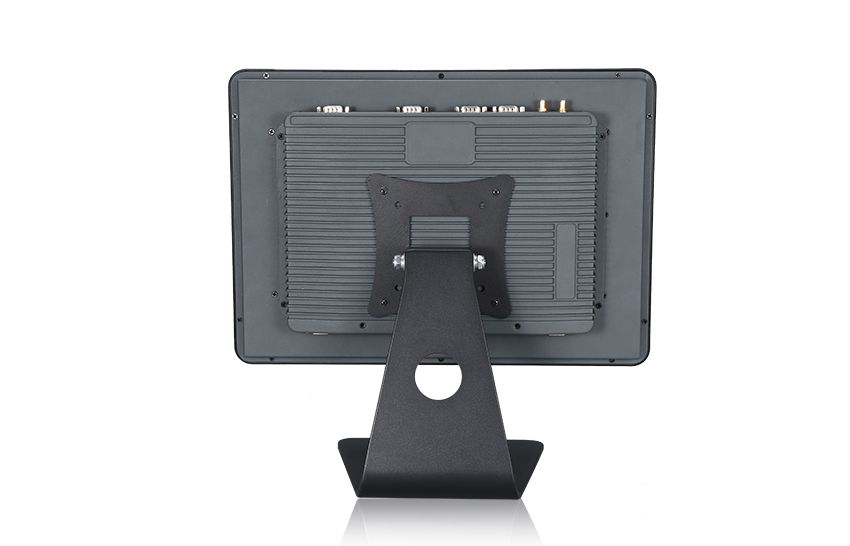

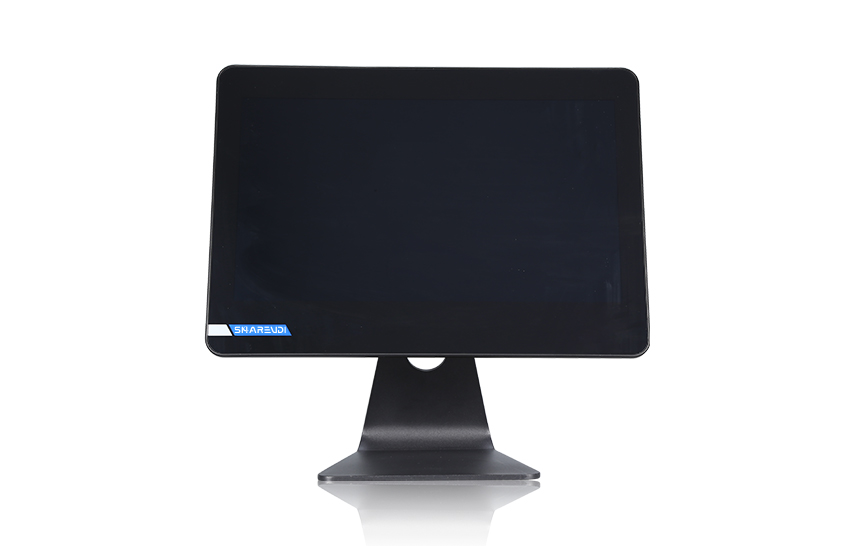

A15 supports various installation methods, including VESA mounting, stand-alone setups, or embedded installations. This adaptability ensures that the panel touch PC can be seamlessly integrated into diverse environments, whether in kiosks or control panels.
This versatile device supports multiple operating systems, including Windows 10/11, Windows IoT, and Linux OS. The A15 also accepts customized software or images, allowing businesses to implement tailored solutions that meet their specific operational requirements within their industrial HMI touch panel environments.
The Touch Panel PC A15 is widely utilized in various self-service terminals such as kiosks, retail vending machines, banking ATMs, and ticket machines etc. Its robust features and reliable performance make it an excellent choice for enhancing user interaction in demanding commercial settings while ensuring durability and efficiency in operation.
-
Part No.A15-RK3576
-
-
Processor System
CPU
ARM® RK3576 Eight nuclear processor
RAM
DDR4 8GB
Storage
Onboard 128GB EMMC
NPU
6TOPS
-
Display
Panel Size
15.6''
Max. Resolution
1920*1080p
Max. Colors
16.7M
Treatment
Anti-Glare
Brightness
250-1000nits
Viewing Direction
Full Viewing
Aspect Ratio
16:9
-
Touch Screen
Touch Points
10 Points
Type
Capacitive Touch
-
Color
Gray
-
I/O Interface
Video output
1*HDMI
Serial Port
2 x RS232 & 2 x RS485
USB Port
2 x USB 2.0 & 2 x USB 3.0
Ethernet
2 x Ethernet
Extendable Port
1 x SIM card, 1 x GPIO(4PIN)
-
General
Certification
CE,FCC,ROHS,ISO
Dimension(W*H*D)
391*276*51 mm
Power Input
AC100-240V.50-60HZ
Power Output
DC12V 2A~5A
Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
6KG
-
Environment
Operating Temperature
-10 ~ 60℃
Storage Temperature
-20 ~ 70℃
Operation Humidity
10% ~ 80%
Storage Humidity
10% ~ 90%
-
